6 meters electric scissor lift platform used for aerial work
  • Self propelled scissor lift high quality for sale driven sc
Name：
Tel：
Email：
Message：

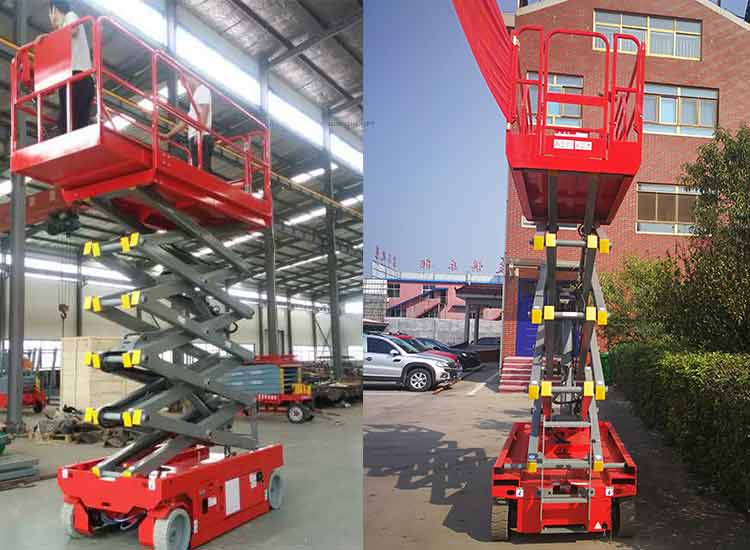

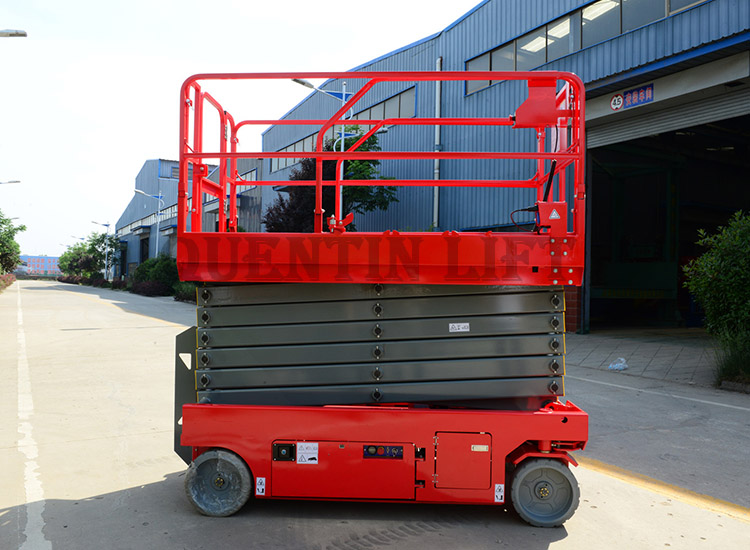

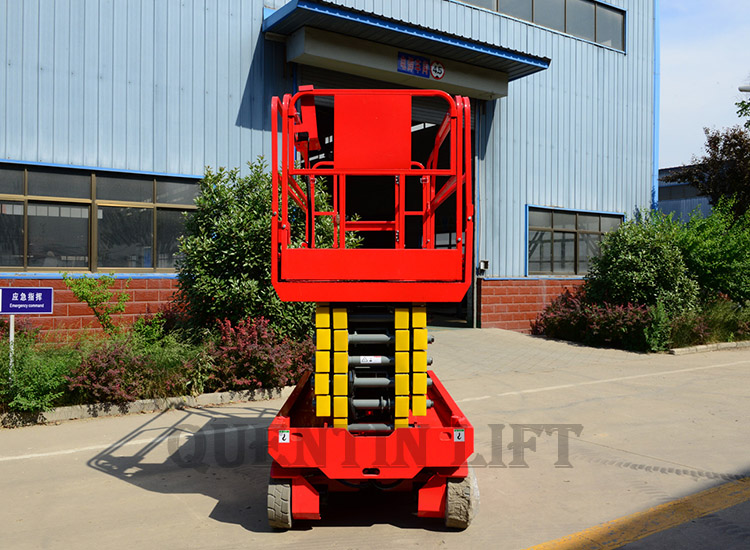

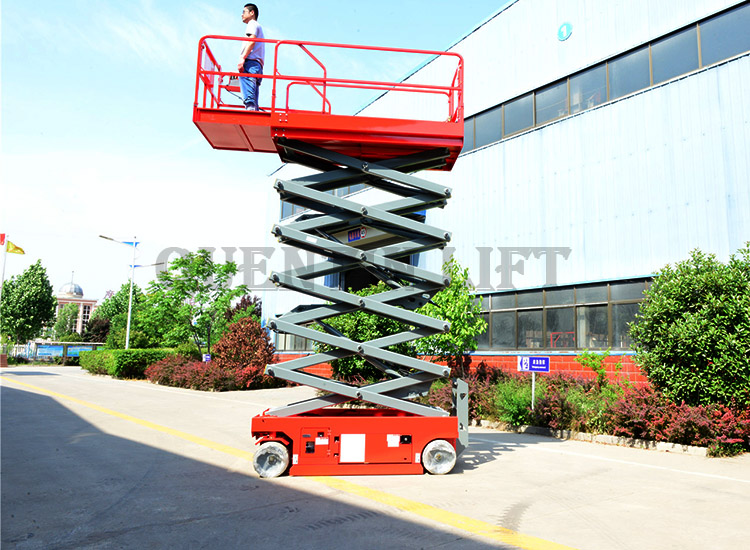

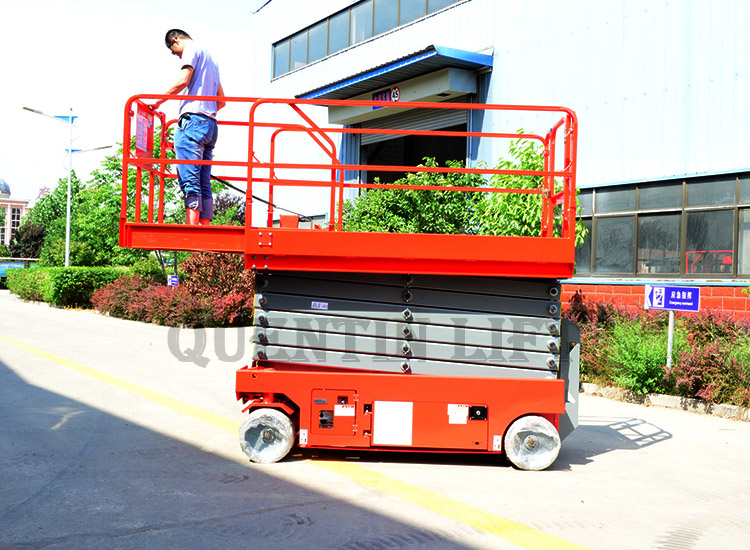

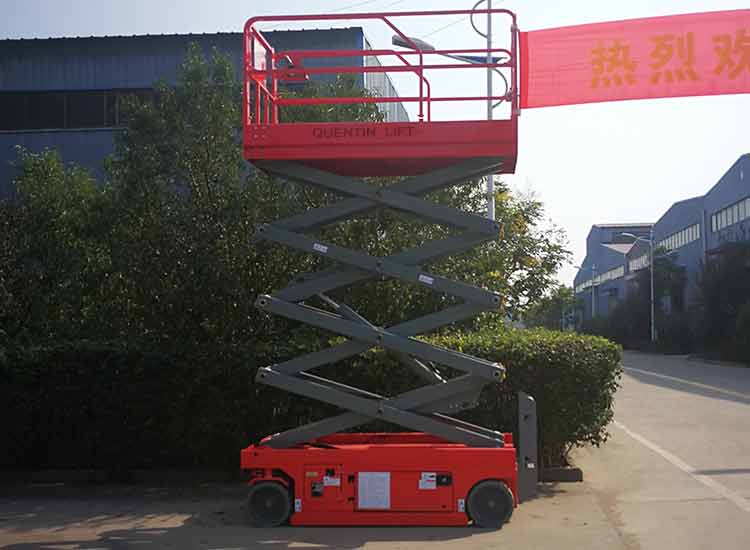

Self-propelled scissor lift : Widely used for aerial work indoor and ourdoor.

People can drive moving, reversing, turning and lifting on the platform board . Self-movement through the full height without any les. It is convenient and flexible use that improves the work efficiency.



Feature:

1). Low noise allows the operation personel  work in a slient environment and the large-angle steering system provides a good maneuverability.

2).Polyurethane solid tire, no damage to the floor.

3).People can drive to any where on the platform.Moving flexible in a narrow place.

4). The adoption of maintenance -free lifting arm sleeves, powder coating and nickel-plated bolts improves the wear resistance and extend the service life of the liftng platform.

 Working heights: ranging from 3m, 4m, 5m,6m,8m,10m,12m,14m,16m,18m





Delivery about 15working days, packaging by wooden case:


Specification of self propelled scissor lift:

Model SJPTZX08B SJPTZX10A SJPTZX12A SJPTZX14A SJPTZX16A
The Max. working
height		 8m 10m 11.75m 13.75m 15.7m
The Max. lifting height 6m 8m 9.75m 11.75m 13.7m
Platform Extension Size 0.91m 0.91m 0.91m 0.91m 0.9m
Loading Capacity 350kg 450kg 320kg 320kg 220kg
Platform Extension load 120kg 120kg 120kg 120kg 110kg
Table Size 2.25x0.75m 2.3x1.17m 2.3x1.17m 2.3x1.17m 2.64x1.12m
Overall Length 2.42m 2.47m 2.47m 2.47m 2.85m
Overall Width 0.8m 1.18m 1.18m 1.18m 1.4m
Overall Height
（handrail not folded）		 2.2m 2.13m 2.3m 2.57m 2.6m
Overall Height
（handrail folded）		 1.73m 1.55m 1.82m 2.1m 2.13m
 Wheel Base 1.85m 1.85m 1.85m 1.85m 2.22m
Grade-ability 30% 30% 25% 25% 20%
Ground Clearance(Stowed) 0.1m 0.1m 0.1m 0.1m 0.1m
Ground Clearance(Raised) 0.019m 0.019m 0.019m 0.019m 0.019m
Turning Radius(Inside) 0m 0m 0m 0m 0m
Turning Radius(Outside) 2.12m 2.3m 2.3m 2.3m 2.7m
Maximum Workers Number 2 3 2 2 2
Up/Down Speed 27/29sec. 50/35sec. 60/45sec. 70/55sec. 90/60sec.
Travel Speed(Stowed) 3.4km/h 3.5km/h 3.5km/h 3.5km/h
Travel Speed(Raised) 0.7km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h
Power 4*6v/225ah 4*6v/225ah 4*6v/225ah 4*6v/225ah
Tyre 15x5x11inch 15x5x11inch 15x5x11inch 15x5x11inch 15x5x11inch
Total Weight 1690kg 2245kg 2490kg 2910kg 3320kg
 Lift Platform Controller :
 Each control button has the instruction mark, the user can easy understand it works and   easy to operate.




Battery :
Electric storage time is long, durable, working time about 6-8 hours with full power.

No trace solid tire :
The small solid rubber wheels moves slightly, and it has no any  damage to the floor.




Emergency descend device :
 If emergency situation, please enter the emergency buton, the equipment willstop working.
scissor lift -emergency.jpg

Customer visit:

.jpg
