- Hydraulic Truck Trailer Portable Loading Dock Ramp
Introduction:

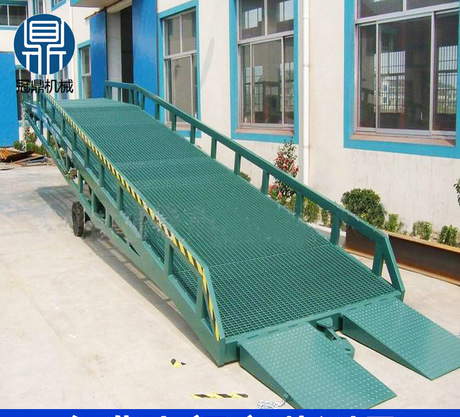

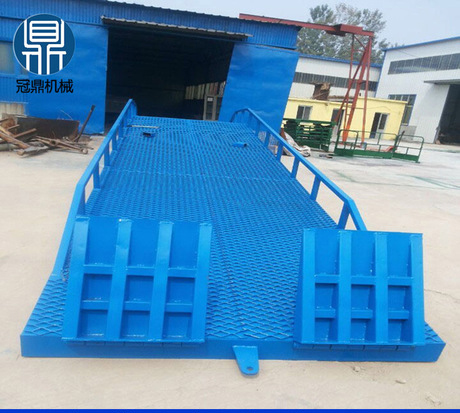

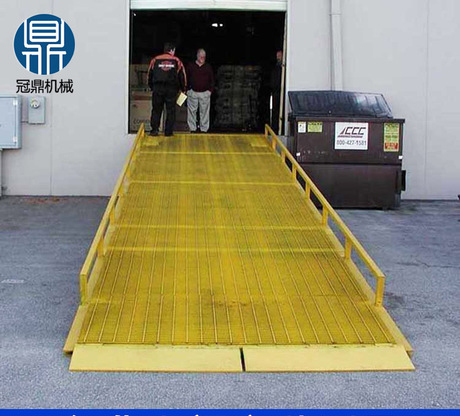

The Hydraulic Truck Trailer Portable Loading Dock Ramp is a standalone solution designed specifically for facilitating the loading and unloading of goods using forklifts from tractor trailers, containers, or rail cars. This single-piece ramp and platform combination ensure that the forklift can achieve complete leveling before entering the trailer, enhancing safety and efficiency.
Featuring a hydraulic system, this loading dock ramp allows for easy adjustment of both slope and height to accommodate various types and heights of trucks or trailers. Whether it's standard trucks, containers, or railway cars, this loading dock ramp can be conveniently utilized.
Its portable design enables effortless relocation to different areas without the need for complex installation procedures. Additionally, the ramp's structural design is carefully engineered to ensure sufficient stability and load-bearing capacity to handle a wide range of loading and unloading operations.
Application:
Service:
 |
 |
 |
Specifications:
|
Model |
Loading Capacity |
Adjustment Range |
Total Size |
Self Weight |
Power type |
|
DCQY-6 |
6000KG |
1000-1800MM |
11000*2000*1400MM |
2300KG |
Manual/Electric |
|
DCQY-8 |
8000KG |
1000-1800MM |
11000*2000*1400MM |
2480KG |
|
|
DCQY-10 |
10000KG |
1000-1800MM |
11000*2000*1400MM |
2750KG |
|
|
DCQY-12 |
12000KG |
1000-1800MM |
11000*2000*1400MM |
2950KG |
Product Details:
 |
 |
 |
 |
|
HEAVY DUTY LEGS It can hold 50 tons. Making the ramp more stabilize when the dock ramp is not working. |
TRUSS STRUCTURE Truss structure of the ramp body and guard rail can disperse the pressure from the loading stuff. |
ADJUSTING BAR
It’s a hydraulic pump handle, to adjust height of loading ramp. One worker can use it to lift up the ramp from the bottom.
|
ELECTRIC CONTROL
Our container loading ramp can be adjusted by electric power such as AC or DC. Saving time and convenience.(OPTIONAL)
|
 |
 |
 |
 |
|
SOLID IRON BLOCKS
To stabilize the wheels while ramp working. Guarantee forklift and worker move safely on ramp.
|
SOLID TIRES
It has a strong support for the ramp body. And the big solid tires make the moving faster.
|
HOOK
The hook joints crane and ramp when using crane to move ramp.
|
TRAILING DEVICE
It joints truck or trailer to move ramp to different work places. Moving more convenient and flexible.
|
Application:
 |
 |
 |
 |
Service:
1. Free 3D Design：Based on years of experience and expertise, our in-house team of senior design engineers can work out the best suitable lifting solutions for you. Free design of hydraulic lifts will be provided based on your work requirements, sites and budgets.
2. 7*24 Online Service：From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty： All products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
2. 7*24 Online Service：From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty： All products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
