- Equipment Loading Mobile Dock Ramp
Introduction:
Introducing our Equipment Loading Mobile Dock Ramp, expertly engineered for heavy-duty equipment loading tasks. This standalone ramp is meticulously designed to effortlessly handle a variety of equipment, including excavators, tractors, forklifts, scissors lifts, and vehicles. Its versatile construction allows for seamless loading from ground level up to low bed, step deck, flatbed, railcar, or van trailers.
Introducing our Equipment Loading Mobile Dock Ramp, expertly engineered for heavy-duty equipment loading tasks. This standalone ramp is meticulously designed to effortlessly handle a variety of equipment, including excavators, tractors, forklifts, scissors lifts, and vehicles. Its versatile construction allows for seamless loading from ground level up to low bed, step deck, flatbed, railcar, or van trailers.
Crafted with durability and efficiency in mind, our mobile dock ramp ensures smooth transitions and secure loading operations. Its robust structure guarantees stability under heavy loads, while its mobility enables easy maneuverability to adapt to different loading scenarios. Safety features are integrated to facilitate secure equipment movement, minimizing risks during loading and unloading procedures.
 |
 |
 |
Specifications:
|
Model |
Loading Capacity |
Adjustment Range |
Total Size |
Self Weight |
Power type |
|
DCQY-6 |
6000KG |
1000-1800MM |
11000*2000*1400MM |
2300KG |
Manual/Electric |
|
DCQY-8 |
8000KG |
1000-1800MM |
11000*2000*1400MM |
2480KG |
|
|
DCQY-10 |
10000KG |
1000-1800MM |
11000*2000*1400MM |
2750KG |
|
|
DCQY-12 |
12000KG |
1000-1800MM |
11000*2000*1400MM |
2950KG |
Product Details:
 |
 |
 |
 |
|
HEAVY DUTY LEGS It can hold 50 tons. Making the ramp more stabilize when the dock ramp is not working. |
TRUSS STRUCTURE Truss structure of the ramp body and guard rail can disperse the pressure from the loading stuff. |
ADJUSTING BAR
It’s a hydraulic pump handle, to adjust height of loading ramp. One worker can use it to lift up the ramp from the bottom.
|
ELECTRIC CONTROL
Our container loading ramp can be adjusted by electric power such as AC or DC. Saving time and convenience.(OPTIONAL)
|
 |
 |
 |
 |
|
SOLID IRON BLOCKS
To stabilize the wheels while ramp working. Guarantee forklift and worker move safely on ramp.
|
SOLID TIRES
It has a strong support for the ramp body. And the big solid tires make the moving faster.
|
HOOK
The hook joints crane and ramp when using crane to move ramp.
|
TRAILING DEVICE
It joints truck or trailer to move ramp to different work places. Moving more convenient and flexible.
|

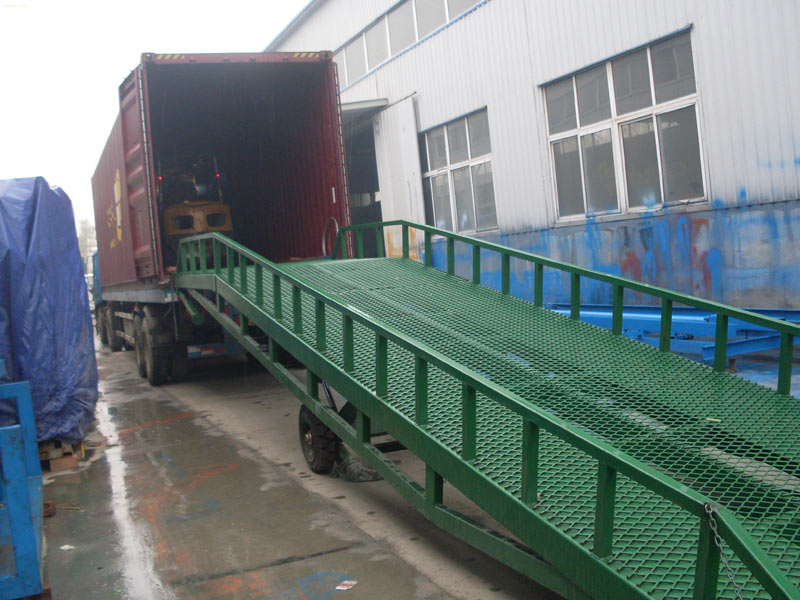

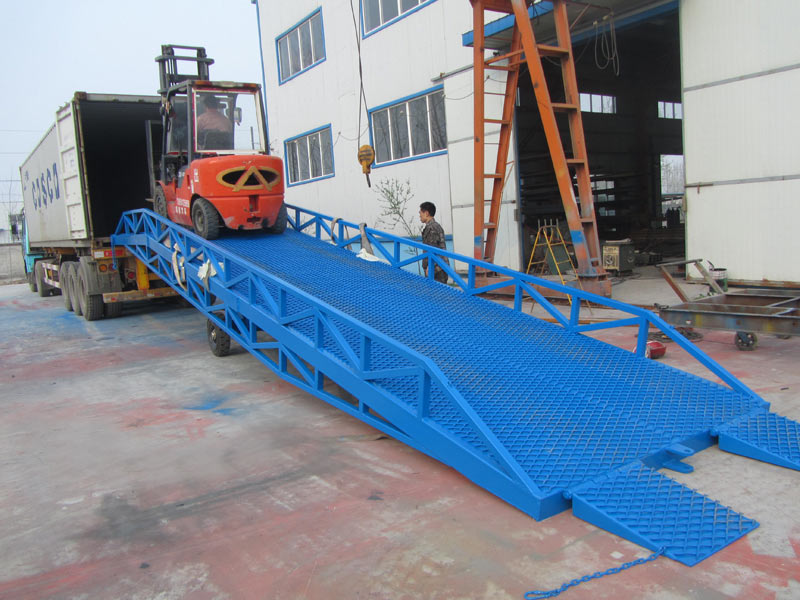

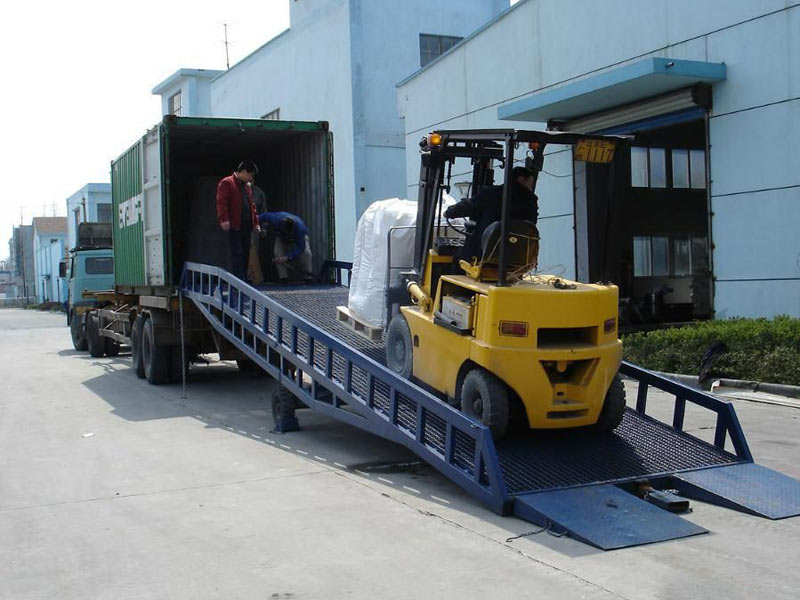

Application:
 |
 |
 |
 |
Service:
1. Free 3D Design：Based on years of experience and expertise, our in-house team of senior design engineers can work out the best suitable lifting solutions for you. Free design of hydraulic lifts will be provided based on your work requirements, sites and budgets.
2. 7*24 Online Service：From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty： All products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
2. 7*24 Online Service：From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty： All products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
