• Product details

 If you have a growing workload but limited space, then the GRADIN JH-8140B Scissor Lift is the perfect choice for you. GRADIN’s Full Rise JH-8140B Scissor Lift works great for raising vehicles high enough to walk underneath, and has a low profile design of only 4 inches, maximizing limited bay space. The JH-8140B is made stronger, more versatile, and easier to use and can lift 9,000lbs (4,000kgs).


Type: Four Cylinder Hydraulic Lift
Certification: CE
Lifting Capacity: 4000kg
Lifting Height(mm): 1900mm
Place of Origin: Jinan, China (Mainland)
Brand Name: GRADIN
Model Number: JH-8140B
Warranty: 15 Months
Name: portable stationary hydraulic car scissor lift platform price wit CE
Color: Blue, Red,etc
Optional Part: 60S/50S
Certificate:CE, CE, ISO approval car lift
Supply Ability: 1200 Set/Sets per Month for electric tire repair machine


Packaging & Delivery
Packaging Details
Port: Qingdao
Lead Time: 25 days after payment


Features:

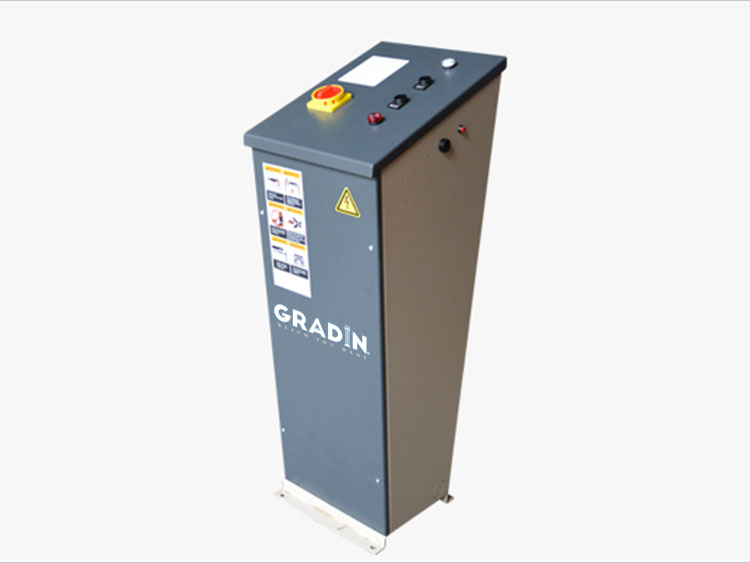

• 24V control system for safety operation;
• 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms;
• Hydraulic cylinders built with hose burst valves for safety protection;
• Both mechanical and hydraulic lock system. This makes it one the safest small scissor lift in the world;
• A safety stop device at the height of 11 7/8"(300mm), both control buttons are needed to lower the lift to ground, tone alarm for added safety.


Parameter:



Product Description
1. Polymer oily wear slider

2. Tubing explosion-proof device

3. 2mm cold-tolled plate slide, less resistance,and more smooth the rise and

fall,replaceable and easy maintenance for late.

4. Integral base, easy to install, and horizontal.

5. CE Standard 3 insurance gear design

6. Adopts Q345 international solid steel, avoid of deformation permanently.

7. Adopts Q345 international 25mm solid steel, avoid of deformation permanently.

8. 4 meters long 6mm thickness 50 x 120mm strengthen the heavy square tube.



Our advantages
* 15years experience : professional technic service , known well for related markets
* Certificate : CE, TUV , ISO
* 12000㎡ factory : large production and storage capacity
* After-sales service : well-trained sales team provide service within 24hours

Our service and support
1) 24 hours reply .
2) Professional solution for all your questions.
3) Customizd design is avaliable.OEM&ODM are welcome.
4) Exclusive and unique solution from our well-trained and professional engineers .
5)Special discount and protection of sales area provided to your distributor.
6)Provide different grades of products, to meet market requirements.
7) Free machines parts provided during warranty period .

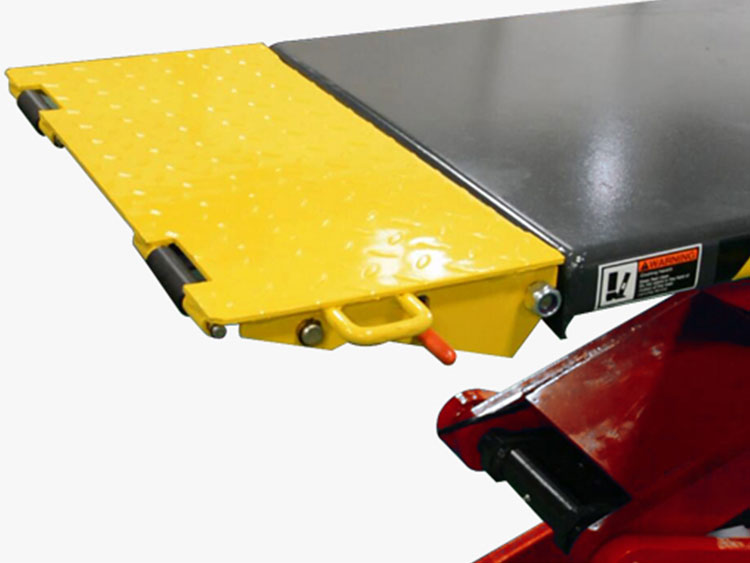

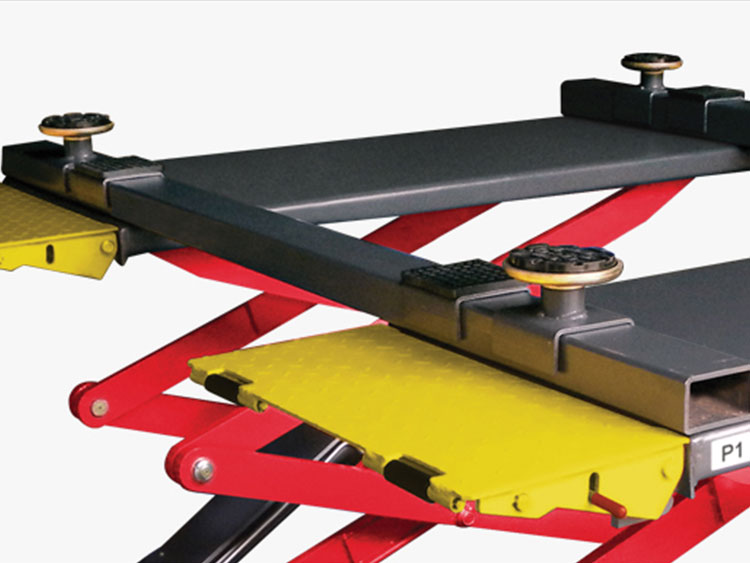

Adjustable ramps and extended platforms for longer wheelbase vehicles

Automatic safety device controlled electronically.

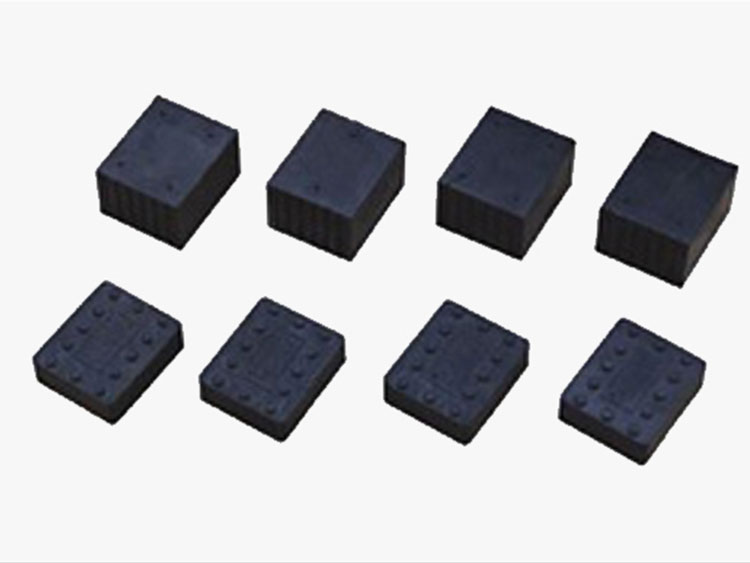

Both 1 1/2" and 3" height rubber pads included as standard supply

Low profile design

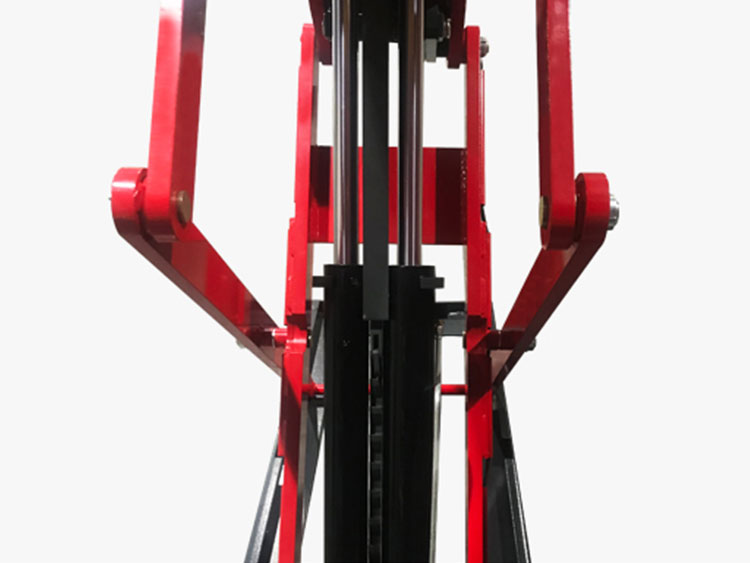

Mechanical and hydraulic lock system

Optional Support Bars & Kits. Recommended for heavier vehicles with narrow frames.
