- AN-3340 Car Lift
| Design | Two Post |
| Type | Double Cylinder Hydraulic Lift |
| Certification | CE |
| Lifting Capacity | 9,000lbs (4,000kg) |
| Model Number | AN-3340 |
| Warranty | 1 Year |
| Name | 4.0T Electrical release floorplate 2 post car lift |
| Power Supply |
220V/240V/380V/415V |
| Power of Motor | 2.2kw |
| Usage |
CAR REPAIR MAINTANCE LIFTING |
| Drive Mode | Hydraulic Cylinder + Chain |
| Min height | 100mm |
| Lifting height | 1780mm |
| Rise time (appro.) | 50s |
| Drop time (appro.) | 20s |
| Height of the Post | 2822mm |
| Inner Width between Pillars | 2770mm |
Product Description

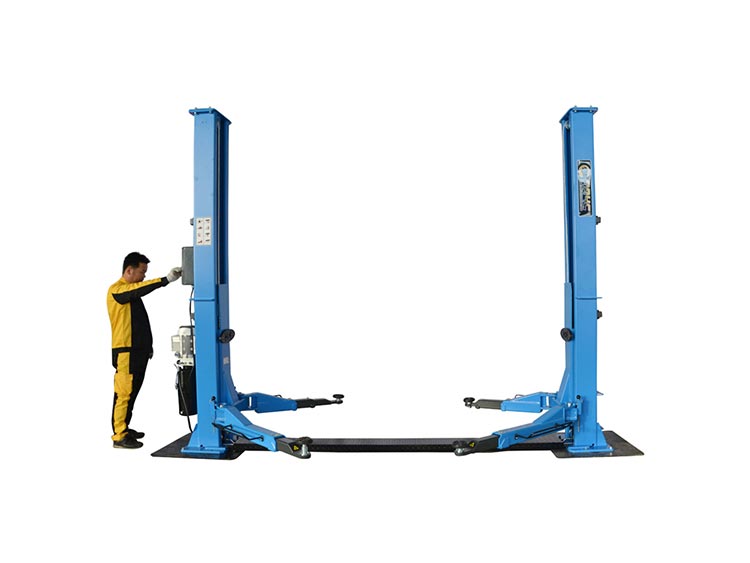

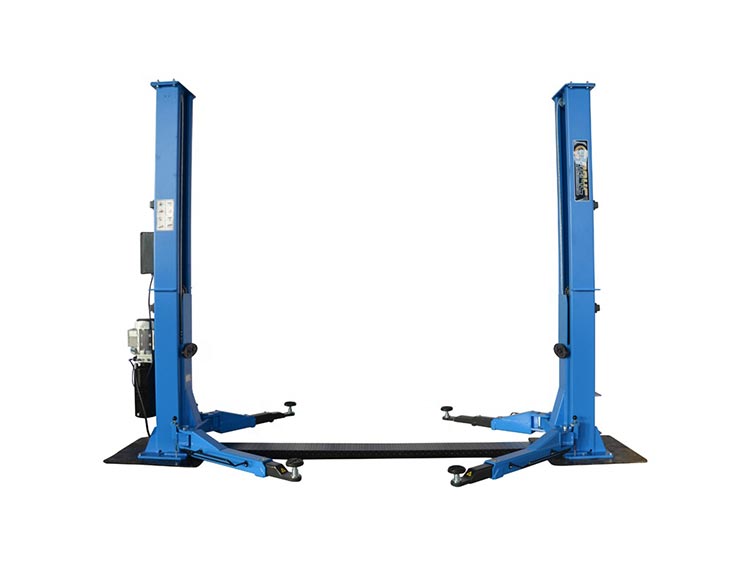

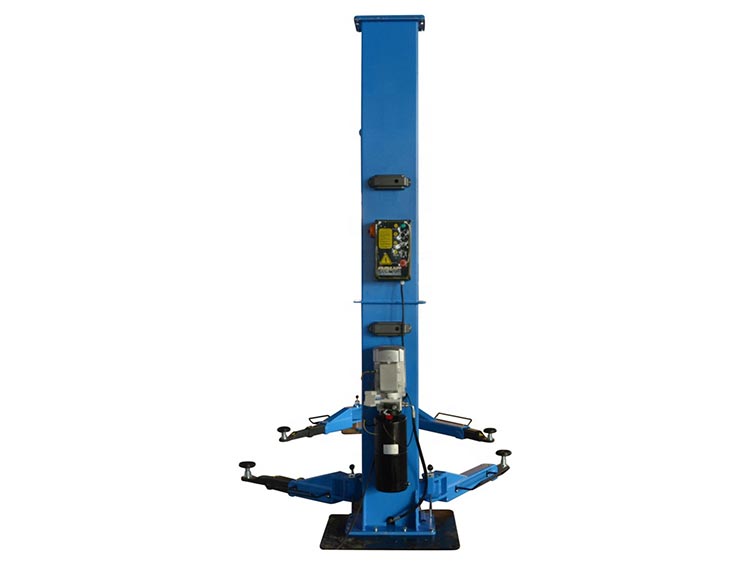

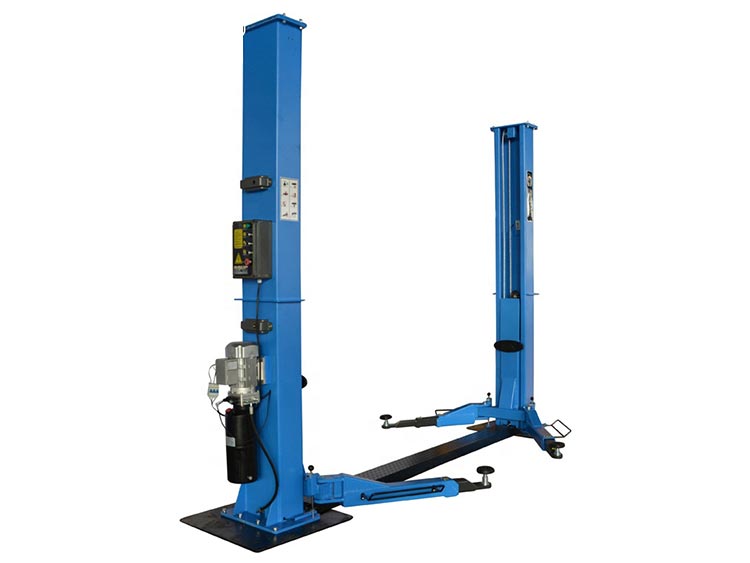

4.0T Electrical release floorplate 2 post car lift
1.GRADIN Double S Heavy duty 2 post car lift
2.1 side manual release
3.heavy duty car lift
4.4.0T
5.Gantry/overhead type
Features:
1. 4.0T capacity
2. Electrical release at the control position
3. Heavy duty lifting arm and sliding table.
4. Aluminium shell motor prevents overhead
5. Operation control system with 24V safety voltage
6. Toe and feet protection device provided
7. Adjustable picking up plate provided
8. Hydraulic pressure pre-setting preventing from lifting vehicle with exceeding rated loads
9. Routine testing with 115% dynamic and 150% static loading
10. CE approved
