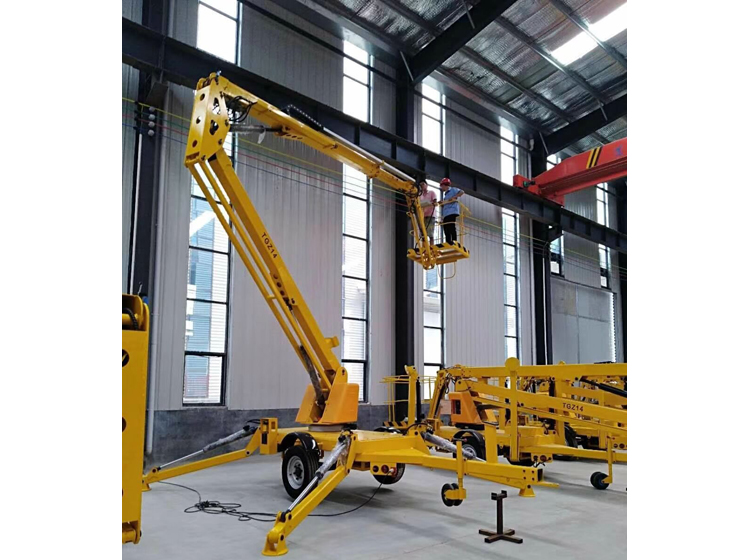

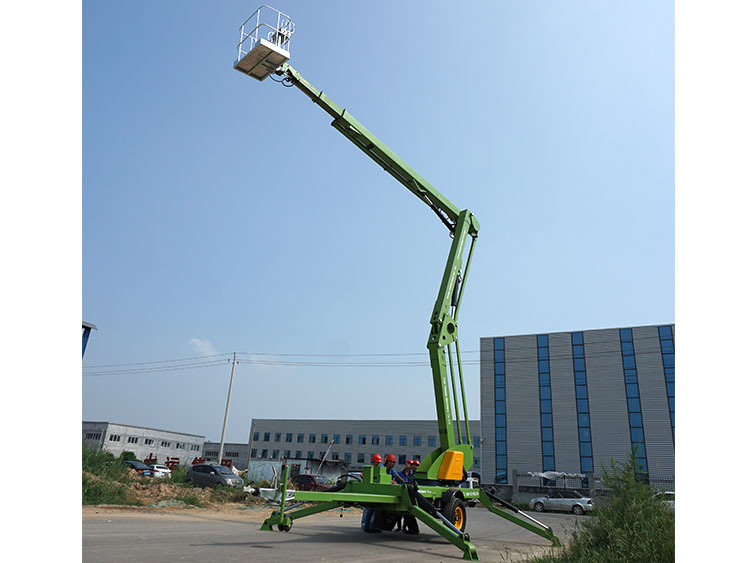

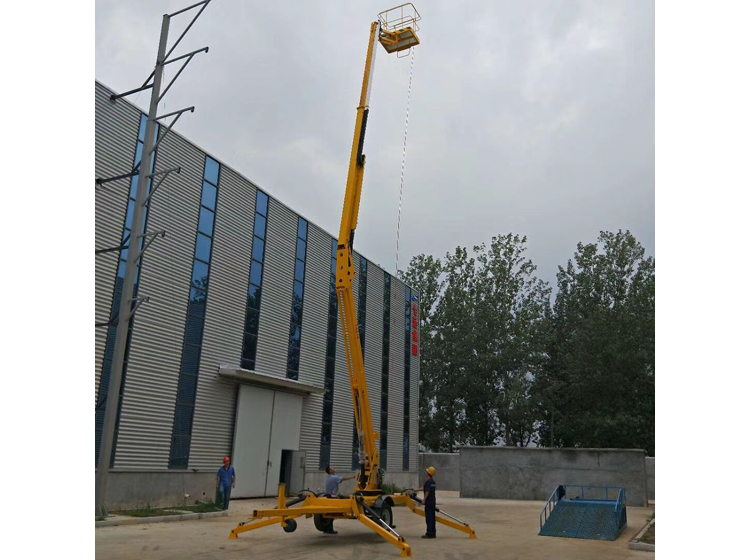

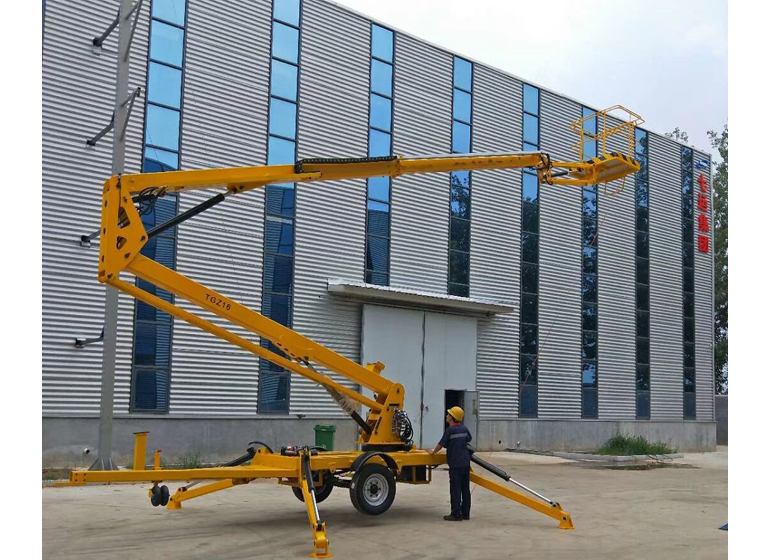

- TGZ10 Articulated Boom Lift
| Technical data | Unit | TGZ10 | Remarks |
| Max.Working Height | m | 12 | |
| Max.Platform Height | m | 10 | |
| Loading Capacity | kg | 200 | |
| Max.Horizontal Reach | m | 5.7 | |
| Dimension | m | 1.2×0.8×1.1 | |
| Dimension stowed | m | 5.4×1.665×1.9 | |
| Outrigger Span(Longitudinal transverse) | m | 3.7×3.45 | |
| Turret Rotation(Continuous) | ° | 360° | |
| Platform Rotation | ° | 160° | Optional |
| Tire | - | 185/75R14C | |
| Control | Hydraulic control | ||
| Machine weight | kg | 1600 | |
| Power | |||
| Diesel Power | HP | 10 | Standard |
| DC power with batteries |
kw Ah |
24V/4.5kw 4×6V 180Ah |
Customizable |
| AC Power | kw | 380v/1.5kw or 220v/2.2kw | Customizable |

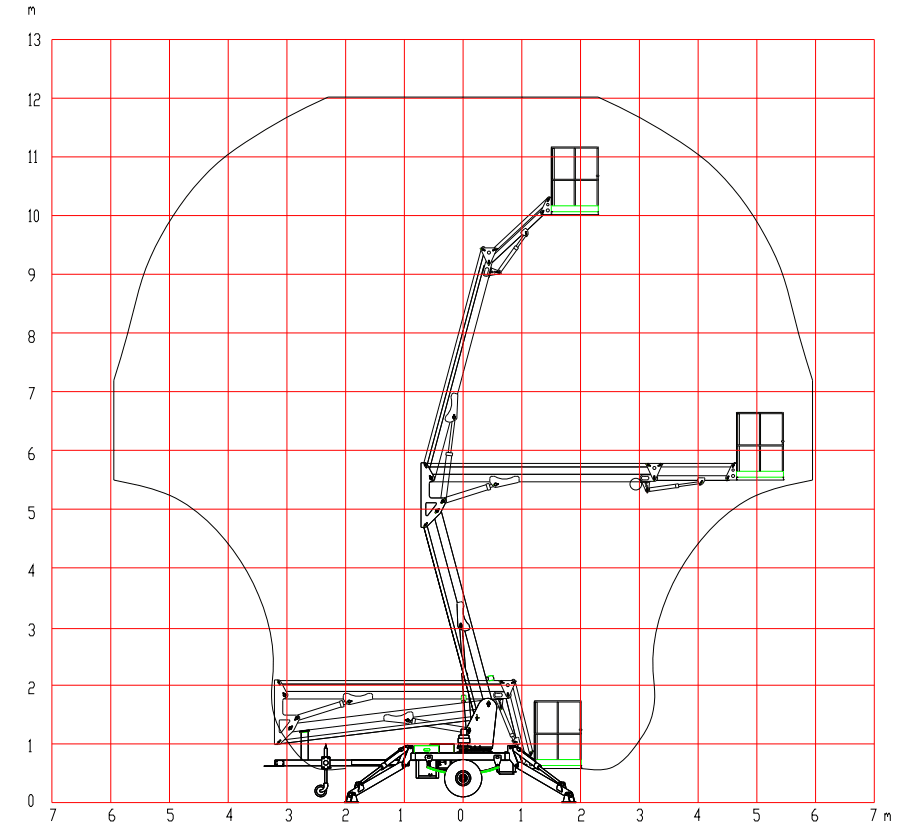

Working Range：
With easy-to-travel mobility, our trailer-mounted boom lifts feature an outstanding operating envelope to reach jobs high and low.
Offering the best of both worlds, our trailer-mounted booms boast the operating envelop:
reaching up, over and out, as well as can be easily towed behind a pickup or SUV.
Offering the best of both worlds, our trailer-mounted booms boast the operating envelop:
reaching up, over and out, as well as can be easily towed behind a pickup or SUV.
