- 27 feet height scissor lift
Mobile scissor aerial work platform is an equipment used in aerial work for maintenance. widely used in construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline for the equipments installations and maintenance.
1). Loading 500kg, 1ton, 1.5ton, 2ton
2). Lifting height from 4meters to 18meters available.
3). Voltage: 220V or 380v for your choice.
4).Table can be designed extension type.
5). Moving by manual pulling.
6).There are AC power, DC power, AC/DC power, battery power, diesel power for your choise.
|
Model |
Lifting Height (m) |
Loading (kg) |
Table Size (mm) |
Self Weight (kg) |
Dimension Size (m) |
|
QTSJY0.3-4 |
4 |
500 |
2100*830 |
800 |
2250*950*1100 |
|
QTSJY0.3-6 |
6 |
500 |
2100*830 |
880 |
2250*950*1200 |
|
QTSJY0.3-8 |
8 |
500 |
2100*930 |
1050 |
2250*1060*1380 |
|
QTSJY0.3-9 |
9 |
500 |
2100*930 |
1165 |
2250*1060*1500 |
|
QTSJY0.3-10 |
10 |
500 |
2100*1230 |
1360 |
2250*1350*1530 |
|
QTSJY0.3-11 |
11 |
500 |
2100*1230 |
1400 |
2250*1350*1650 |
|
QTSJY0.3-12 |
12 |
500 |
2550*1530 |
2260 |
2720*1670*1750 |
|
QTSJY0.3-14 |
14 |
500 |
2812*1530 |
2400 |
3067*1730*1810 |
|
QTSJY0.3-16 |
16 |
500 |
2812*1600 |
3500 |
3067*1810*2080 |
|
QTSJY0.3-18 |
18 |
500 |
3070*1600 |
3900 |
3321*1810*2080 |
|
QTSJY1.0-4 |
4 |
1000 |
2100*1200 |
1250 |
2250*1350*1180 |
|
QTSJY1.0-6 |
6 |
1000 |
2100*1200 |
1400 |
2250*1350*1300 |
|
QTSJY1.0-8 |
8 |
1000 |
2100*1200 |
1585 |
2250*1350*1420 |
|
QTSJY1.0-10 |
10 |
1000 |
2100*1200 |
1700 |
2250*1350*1530 |
|
QTSJY1.0-12 |
12 |
1000 |
2550*1530 |
2560 |
2796*1670*1750 |
|
QTSJY1.0-14 |
14 |
1000 |
2812*1530 |
2765 |
3067*1750*1810 |
|
QTSJY1.5-6 |
6 |
1500 |
2100*1530 |
1780 |
2250*1750*1530 |
|
QTSJY1.5-8 |
8 |
1500 |
2100*1530 |
2070 |
2250*1750*1690 |
|
QTSJY1.5-10 |
10 |
1500 |
2100*1530 |
2250 |
2250*1750*1850 |

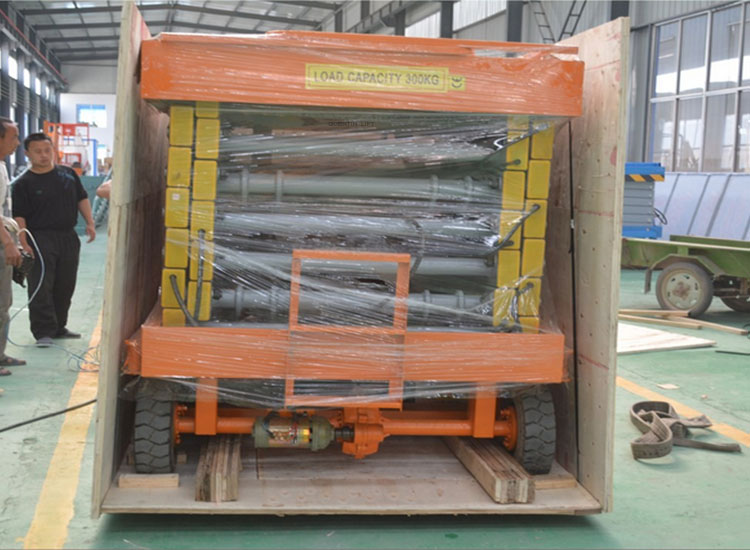

Packaging by wooden case:
