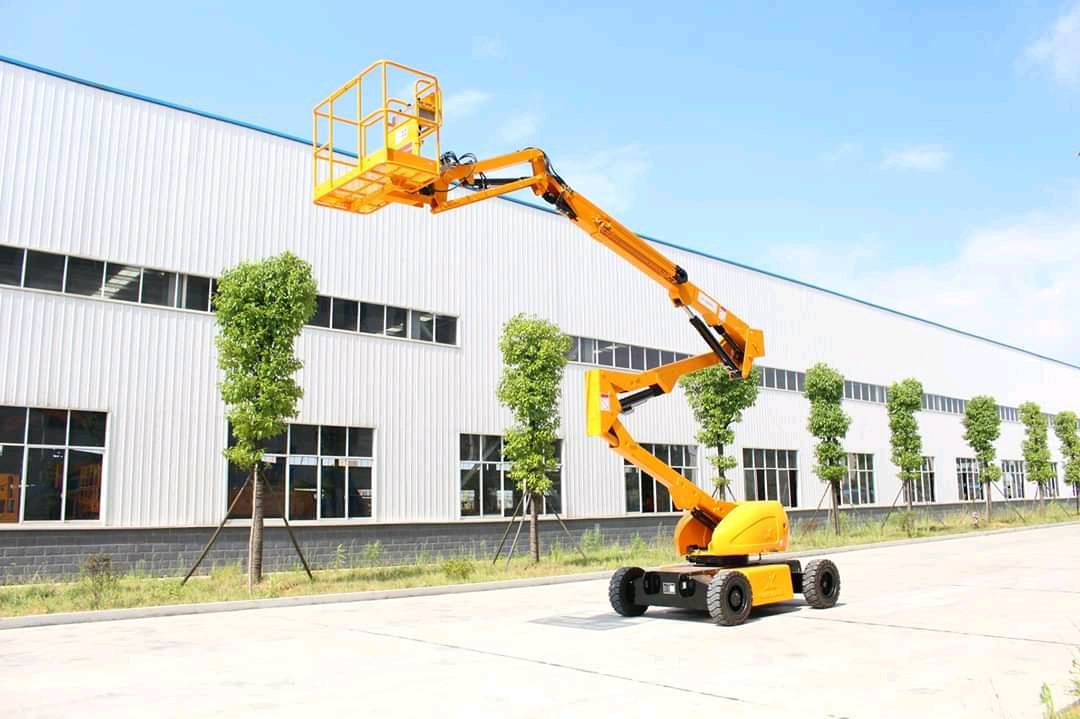

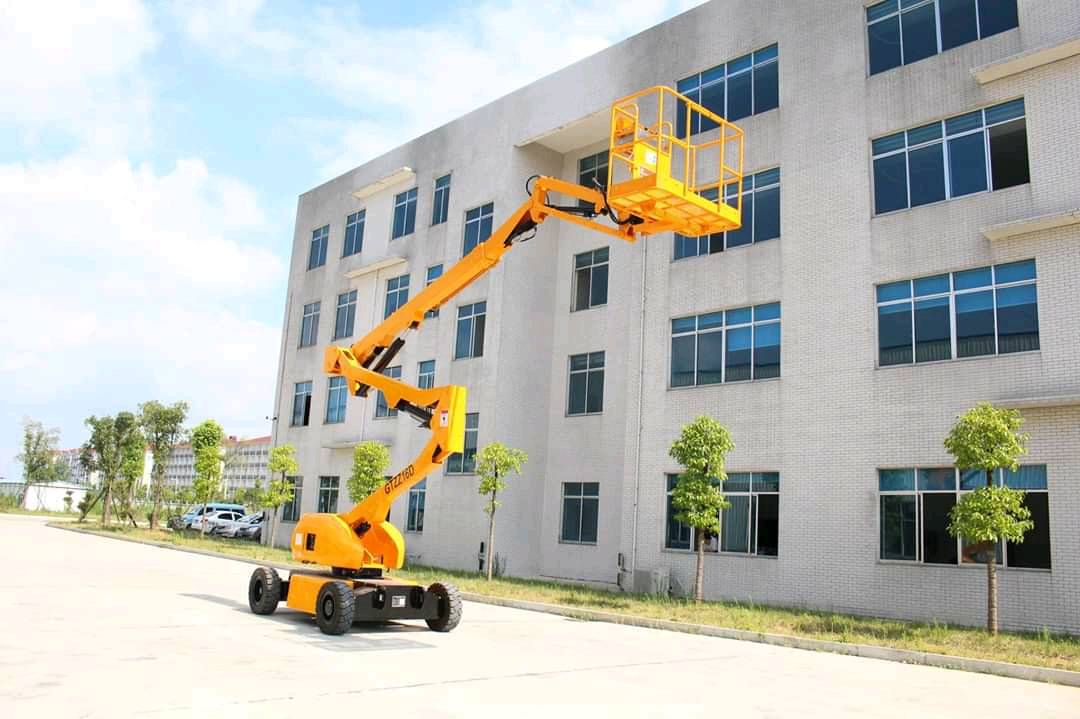

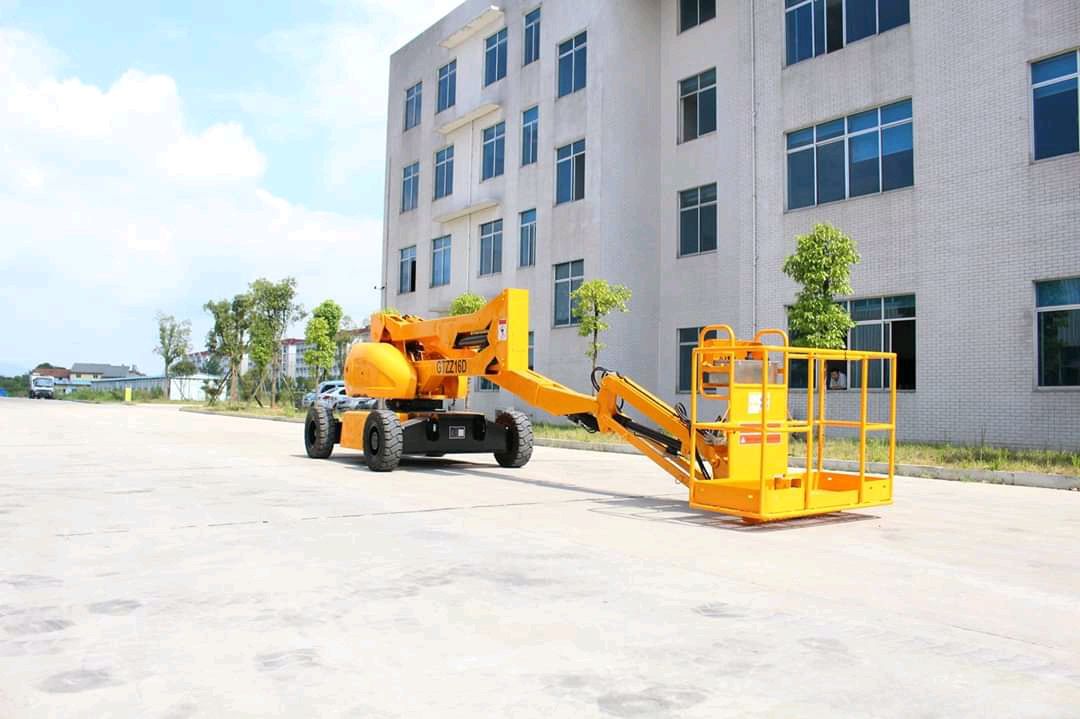

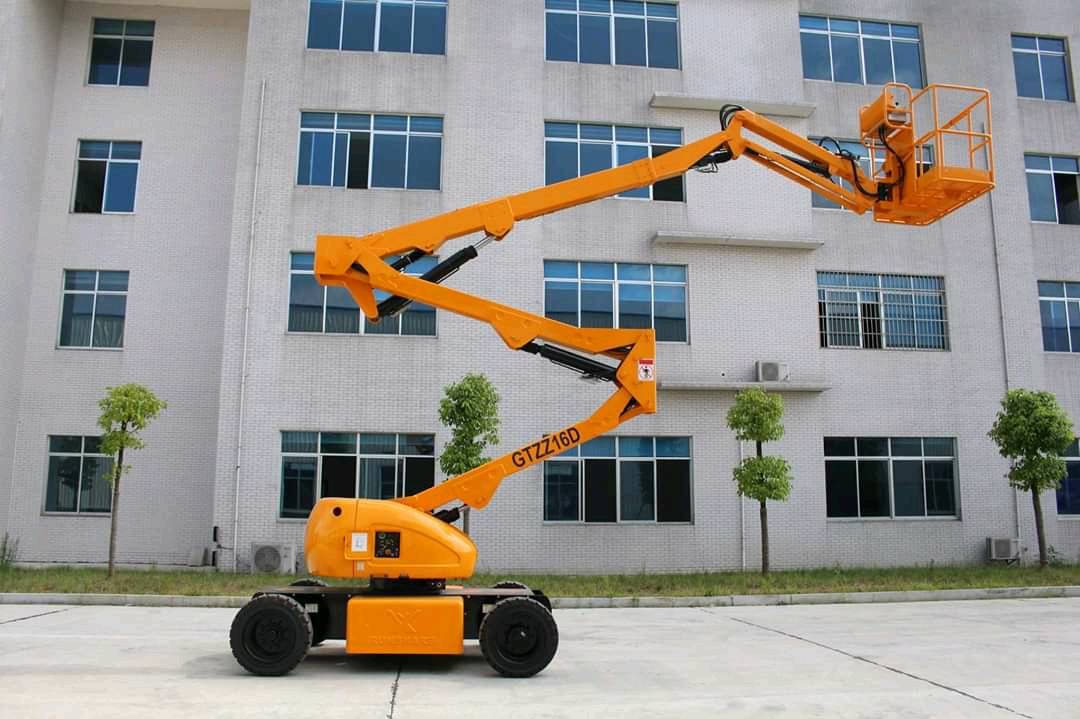

- GTZZ-16D articulating boom lifts-DC power
What is Articulating Boom Lift?
An articulating boom lift, also known as an articulated boom lift or cherry picker, is a type of aerial work platform used to elevate workers or equipment to reach high or difficult-to-access areas. It consists of multiple sections joined by hinged joints, allowing the boom to articulate or bend in different directions.
Overview:
Quentin-lift GTZZ-16D DC electric articulating boom lift offer quiet, emission-free operation. With this electric boom lift, operators can easily work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.
1. Zero tailswing and tight turning radius for easy manoeuvring in confined jobsites
2. 30% gradeability and 5 km/h travel speed for excellent drive performance
3. 160° hydraulic platform rotation and self-levelling platform for easy operation
4. Large all-steel platform lifts up to 230kg
 |
 |
 |
 |
Specifications:

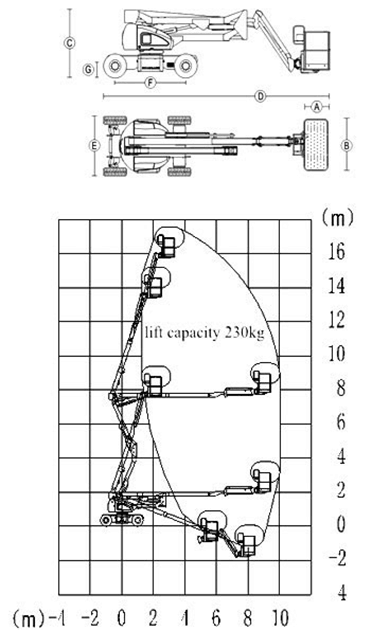

| Model | GTZZ-16D |
  |
| Maximum Working Height | 17.8m | |
| Maximum Platform Height | 15.8m | |
| Maximum Horizontal Reach | 10m | |
| Platform Capacity | 230kg | |
| Maximum Up and Over Clearance | 7.6m | |
| Machine Length( stowed) Ⓓ | 7.9m | |
| Machine Width (stowed) Ⓔ | 2m | |
| Machine Height(stowed) Ⓒ | 2m | |
| Wheel Base Ⓕ | 2.2m | |
| Ground Clearance Ⓖ | 0.2m | |
| Platform DimensionⒷ*Ⓐ | 1.53*0.76*1.1m | |
| Tail Swing | 0m | |
| Turning Radius | 4.5m | |
| Drive Speed(stowed) | 5km/h | |
| Drive Speed(raised or extended) | 0.8km/h | |
| Gradeablity | 30% | |
| Solid Tire | 28*9-15 | |
| Swing Speed | 0~0.8rpm | |
| Turntable Swing | 360° Continuous | |
| Platform Leveling | Automatic leveling | |
| Platform Rotation | ±80° | |
| Hydraulic Tank Volume | 70L | |
| Machine Weight | 6780kg | |
| Control Voltage | 24V | |
| Electric motor -Drive | 6.5*2kw | |
| Battery | 8*6/420V/Ah | |
| Charger | 48/40 V/A |
Service:
1. Free 3D Design：Based on years of experience and expertise, our in-house team of senior design engineers can work out the best suitable lifting solutions for you. Free design of hydraulic lifts will be provided based on your work requirements, sites and budgets.
2. 7*24 Online Service：From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty： All Grandinlift products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
