- GTZZ-14 Articulating Boom Lift- Diesel Power
Overview:
The GTZZ-14 is an articulating boom lift powered by a diesel engine. It features an articulating boom design that allows for greater flexibility and maneuverability. The boom can reach up and over obstacles, providing access to otherwise hard-to-reach areas. The maximum platform height of the GTZZ-14 is around 14 meters (approximately 46 feet). It typically has a platform capacity of around 230 kilograms (approximately 507 pounds), allowing for one or two workers along with tools or equipment.
Specifications:
The GTZZ-14 is an articulating boom lift powered by a diesel engine. It features an articulating boom design that allows for greater flexibility and maneuverability. The boom can reach up and over obstacles, providing access to otherwise hard-to-reach areas. The maximum platform height of the GTZZ-14 is around 14 meters (approximately 46 feet). It typically has a platform capacity of around 230 kilograms (approximately 507 pounds), allowing for one or two workers along with tools or equipment.
Specifications:

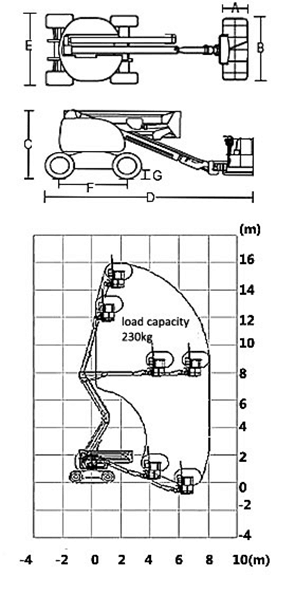

| Model | GTZZ-14 |
  |
| Maximum Working Height | 16.2m | |
| Maximum Platform Height | 14.2m | |
| Maximum Horizontal Reach | 8m | |
| Platform Capacity | 230kg | |
| Maximum Up and Over Clearance | 7.75m | |
| Machine Length( stowed) Ⓓ | 6.2m | |
| Machine Width (stowed) Ⓔ | 2.29m | |
| Machine Height(stowed) Ⓒ | 2.38m | |
| Wheel Base Ⓕ | 2.2m | |
| Ground Clearance Ⓖ | 430mm | |
| Platform DimensionⒷ*Ⓐ | 1.83*0.76m | |
| Tail Swing | 3.0m | |
| Turning Radius | 5.2m | |
| Drive Speed(stowed) |
6.3km/h(2WD); 4.2km/h(4WD) |
|
| Drive Speed(raised or extended) | 1.1km/h | |
| Gradeablity | 45%(4WD);30%(2WD) | |
| Solid Tire | 33*12-20 | |
| Swing Speed | 0-0.8rpm | |
| Turntable Swing | 360° Continuous | |
| Platform Leveling | Automatic leveling | |
| Platform Rotation | ±80° | |
| Hydraulic Tank Volume | 100L | |
| Machine Weight |
7577kg(2WD) 7757kg(4WD) |
|
| Control Voltage | 12V | |
| Drive & Steering | 4*2*2 or 4*4*2 | |
| Engine |
Cummins(B2.8-C58) Yamar(4TNV94L-BXPHZ) |
|
Service:
1. Free 3D Design：Based on years of experience and expertise, our in-house team of senior design engineers can work out the best suitable lifting solutions for you. Free design of hydraulic lifts will be provided based on your work requirements, sites and budgets.
2. 7*24 Online Service：From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty： All products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
2. 7*24 Online Service：From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty： All products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
